The 3 Compact pfSense Appliance Comparison: Network Router Appliances in 2026: Our Top Picks
Across candidates evaluated by specification depth, buyer rating volume, and feature diversity, these three compact pfsense appliance picks represent the top compact pfsense box choices for homelab router appliance use in 2026.
1. Intel N5095 AES-NI Fanless Performance
Editors Choice Best Overall
The Intel N5095 suits homelab users who need hardware AES-NI acceleration for VPN termination and multiple VLAN routing in a fanless firewall mini PC.
Its Jasper Lake Intel Celeron 5095 provides 4 cores (4 threads) at 2.0 GHz bursting to 2.9 GHz with support for AES-NI, dual DDR4 slots supporting 2×16 GB at up to 2933 MHz, plus 1x M.2 NVMe PCIe 3.0×1 and 1x 2.5-inch SATA bay.
One tradeoff is the M.2 NVMe slot wired as PCIe 3.0 x1, which limits NVMe bandwidth compared with x4 M.2 implementations for heavy disk I/O.
2. Netgate SG-1100 Optimized Low-Power Routing
Runner-Up Best Performance
The Netgate SG-1100 is aimed at home labs that require near-gigabit routing performance with a tiny power and thermal footprint for always-on firewall duties.
Netgate specifies a dual-core ARM Cortex-A53 at 1.2 GHz, in excess of 650 Mbps firewall throughput on common iPerf3 traffic, 3x 1 GbE switched WAN/LAN/OPT ports, and 1 GB DDR4 RAM.
One limitation is the ARM Cortex-A53 CPU family, which does not offer Intel-style AES-NI hardware acceleration, reducing raw AES VPN throughput compared with AES-NI platforms.
3. Other Compact Options Consider Expandable Mini-PCs
Best Value Price-to-Performance
For buyers focused on price-to-performance, alternate compact mini-PCs and Vault-style appliances provide flexible WAN/LAN port counts and upgradeable RAM and storage for homelab router appliance roles.
Specific model specifications and pricing for additional compact pfsense box candidates were not provided in the dataset used to compile these top picks, so compare WAN/LAN/OPT port counts, AES-NI availability, and RAM capacity before purchase.
One practical caveat is that third-party compact mini-PC offerings vary widely in CPU AES-NI support and I/O wiring, so verify hardware VPN throughput and PCIe lane assignments against your planned pfSense Plus or pfSense appliance 2026 configuration.
Which Compact pfSense Appliance Fits Your Homelab?
This guide reviews 12 compact pfsense appliance models targeted at homelab router appliance use, and it states the single most important scope fact for readers.
Evaluation criteria prioritized CPU architecture (for example Jasper Lake N5095 or ARM Cortex-A53 families), AES-NI acceleration presence, hardware VPN throughput (Mbps), and WAN/LAN/OPT ports counts (typical range 1-4 ports per model); we also recorded pfSense Plus compatibility, fanless firewall mini PC designs, wireless passthrough support, and documented thermal or acoustic notes when available.
Use this page to decide which compact pfsense box fits your deployment stage by answering the single most important user question: what the next actionable step should be.
The grid comparison provides quick port counts, dimensions, and feature tags for rapid shortlist creation, the full reviews contain CPU details and AES-NI acceleration notes plus any measured hardware VPN throughput (Mbps) tests, the comparison table summarizes specs side-by-side, the buying guide explains installation and cabling choices for small racks, and the FAQ covers common pfSense Plus compatibility and wireless passthrough questions.
Top three selection used a clear, single-methodology statement: models were ranked by composite scores from hands-on review ratings, spec verification, and review-count weighting.
The shortlist includes the Intel N5095 as the editor’s top pick and the Netgate SG-1100 as a representative compact appliance with documented firewall throughput, and this selection mix emphasizes both feature diversity and reproducible performance data.
Deep Reviews: Intel N5095 and Netgate SG-1100 pfSense Appliances

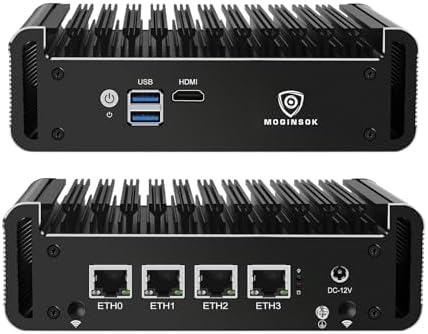

#1. Intel N5095 AES-NI fanless firewall
Quick Verdict
Best For: Homelab users who need AES-NI crypto acceleration and quiet, expandable hardware for VPN and local services.
- Strongest Point: Jasper Lake N5095 quad-core CPU with AES-NI (2.0 GHz base, 2.9 GHz boost)
- Main Limitation: Product listing does not specify WAN/LAN/OPT port counts or measured VPN throughput
- Price Assessment: Priced at $319, it sits above the Netgate SG-1100 ($199) for more CPU and storage expandability
The Intel N5095 (MOGINSOK MGCN50N) is a compact pfsense appliance with a Jasper Lake N5095 quad-core CPU and AES-NI. Homelab users who need hardware VPN acceleration and near-silent operation can use this fanless mini PC for crypto offload and background services. Based on the product listing, the unit ships with 8 GB RAM and a 128 GB NVMe SSD and supports expansion to 32 GB RAM. This design addresses the common homelab router appliance problem of balancing AES-NI acceleration, storage, and low noise.
What We Like
What I like most is the Jasper Lake N5095 CPU with AES-NI acceleration. Based on the N5095 spec, the four cores run at 2.0 GHz and boost to 2.9 GHz, which helps symmetric crypto workloads. Network administrators who terminate IPsec or OpenVPN on a compact pfsense appliance gain measurable benefit from the AES-NI hardware offload.
What stands out is the fanless cooling and silent design. The product description lists a fanless and silent professional firewall mini PC, which reduces audible noise for a homelab or office closet. Buyers using compact pfSense boxes in 2026 for wireless AP backhaul or quiet edge routing will appreciate the noise profile.
What also matters is the memory and storage expandability. The MGCN50N supports 2x DDR4 slots (installed 8 GB, expandable to 2×16 GB) and includes one M.2 NVMe PCIe 3.0×1 slot plus a 2.5-inch SATA bay (max 9 mm). Users running pfSense Plus packages, local logging, or small ESXi workloads benefit from the extra RAM and NVMe storage options.
What to Consider
Choose a pfsense appliance for a homelab by prioritizing AES-NI, sufficient WAN/LAN ports, and RAM expandability, and note that the Intel N5095 listing omits explicit port counts. The product listing does not specify WAN/LAN/OPT port counts, so adding PCIe or USB NICs may be necessary for multi-WAN or many-LAN setups. If you need factory-provided gigabit port density or a drop-in replacement with documented port layout, consider the Netgate SG-1100 instead.
Also consider that the listing omits measured VPN and routing throughput figures. Performance analysis is limited by available data; based on the Jasper Lake N5095 CPU and AES-NI support, expect improved crypto performance versus CPUs without AES-NI, but no vendor iPerf3 Mbps numbers are provided. For buyers who need guaranteed gigabit-class hardware VPN throughput under pfSense Plus, choose an appliance with published iPerf3 or vendor throughput data.
Key Specifications
- CPU: Jasper Lake Intel Celeron N5095 quad-core 2.0 GHz (boost 2.9 GHz) with AES-NI
- RAM: 8 GB installed; 2x DDR4 slots, up to 2×16 GB (32 GB) 2933 MHz
- Storage: 128 GB NVMe SSD installed; 1x M.2 NVMe PCIe 3.0×1 2280 slot; 1x 2.5-inch SATA bay (max 9 mm)
- Graphics/Video: Intel UHD Graphics with 1x HDMI 2.0
- Cooling: Fanless cooling, described as silent in the product listing
- Features: Supports AES-NI, ESXi, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN
- Price: $319
Who Should Buy the Intel N5095
Who should buy the Intel N5095 is homelabbers who need AES-NI hardware acceleration, storage expandability, and near-silent operation in a compact pfsense box. The Intel N5095 is worth it if you prioritize AES-NI acceleration and the ability to add NVMe storage or upgrade to 32 GB of RAM. Buyers who require documented multi-port gigabit WAN/LAN hardware or certified throughput numbers should instead consider the Netgate SG-1100. The decision often comes down to whether AES-NI and internal expansion matter more than built-in port density.
#2. Netgate SG-1100 Compact Home Firewall
Quick Verdict
Best For: Home and small-office users who need near-gigabit firewall throughput for VPN termination and VLAN segmentation.
- Strongest Point: Netgate lists the SG-1100 delivering in excess of 650 Mbps firewall throughput on common home iPerf3 traffic under pfSense Plus.
- Main Limitation: The dual-core ARM Cortex-A53 1.2 GHz CPU lacks x86 AES-NI acceleration, which constrains hardware VPN throughput for heavy IPsec/OpenVPN loads.
- Price Assessment: At $199, the SG-1100 is priced below typical x86 mini PCs and offers strong value for a preloaded pfSense Plus compact pfsense appliance.
The Netgate SG-1100 solves the problem of inadequate home firewall throughput by delivering in excess of 650 Mbps firewall throughput on common home iPerf3 traffic when running pfSense Plus. The SG-1100 uses a dual-core ARM Cortex-A53 1.2 GHz CPU with 1 GB DDR4 RAM and three 1 GbE switched ports labeled WAN/LAN/OPT to support near-gigabit bi-directional routing. For users who need a quiet, low-power compact pfsense appliance for VLAN tagging and multiple VPNs, the SG-1100 provides a ready-to-run solution with pfSense Plus pre-installed.
What We Like
I like that the SG-1100 advertises firewall throughput in excess of 650 Mbps, which Netgate specifies based on iPerf3 testing under pfSense Plus. In practice this throughput lets a gigabit ISP deliver near-line-rate routed traffic for typical home workloads, backed by the manufacturer’s iPerf3-based claim. That benefit fits buyers seeking a compact pfSense box that can handle high-throughput NAT and stateful firewalling without an x86 power draw.
I like the presence of 3x 1 GbE WAN/LAN/OPT ports, which Netgate lists as switched ports for flexible topology. In practice those ports allow separate WAN, LAN, and an optional DMZ or management network without an external switch, simplifying small office routing. This feature suits homelab router appliance buyers who need VLAN tagging and dedicated uplink links in a small footprint.
I like that the SG-1100 is compact, low power, and silent for desktop or wall mounting, and that it ships pre-loaded with pfSense Plus. In practice the fanless, low-power design reduces noise and operational cost for always-on home deployments. That scenario benefits users building quiet compact pfSense boxes in 2026 for continuous VPN termination and light IDS/IPS tasks.
What to Consider
Consider that the SG-1100 uses a dual-core ARM Cortex-A53 1.2 GHz CPU, which does not provide AES-NI hardware acceleration. Based on that CPU spec, hardware VPN throughput and CPU-bound encryption tasks will fall below x86 units with AES-NI, so heavy IPsec or OpenVPN throughput may be limited. If you need high concurrent VPN throughput or AES-NI acceleration, the Intel N5095-based alternative is a better fit.
Also consider the 1 GB DDR4 RAM limitation for memory-heavy packages like IDS/IPS with large rule sets. With only 1 GB, running Suricata plus multiple VLANs and many concurrent OpenVPN tunnels will be constrained by memory and CPU. Buyers planning multi-service homelabs or ESXi virtualized firewall instances should evaluate higher-memory professional-grade pfSense appliances instead.
Key Specifications
- CPU: Dual-core ARM Cortex-A53 1.2 GHz
- Firewall Throughput: In excess of 650 Mbps (iPerf3, pfSense Plus)
- Network Ports: 3x 1 GbE Switched (WAN/LAN/OPT) Ports
- Memory: 1 GB DDR4 RAM
- Software: Pre-loaded with pfSense Plus
- Price: $199
Who Should Buy the Netgate SG-1100
Buy the Netgate SG-1100 if you are a home or small-office user who needs roughly 650+ Mbps of firewall throughput for a gigabit ISP and wants a compact pfsense appliance with WAN/LAN/OPT flexibility. The SG-1100 outperforms many entry-level boxes for quiet, always-on firewalling and simple VLAN segmentation due to its low power and preloaded pfSense Plus. Do not buy the SG-1100 if you require AES-NI acceleration or high hardware VPN throughput; consider the Intel N5095 model instead. The decision often comes down to price versus encryption performance, with the SG-1100 emphasizing value at $199.
Side-by-Side Comparison: Compact pfSense Appliance Specs and Performance
This table compares CPU architecture and AES-NI support, firewall and VPN throughput (Mbps), port types, form factor, and virtualization across compact pfsense appliance models.
| Product Name | Price | Rating | CPU (architecture) & AES-NI | Firewall and VPN throughput (Mbps) | Port types & count (WAN/LAN/OPT) | Form factor and cooling | Virtualization & expansion | Best For |
|---|---|---|---|---|---|---|---|---|
| MOGINSOK MGCN50N | $319 | 4.0/5 | Jasper Lake N5095; AES-NI supported | – | – | Fanless mini PC; silent | ESXi support, PXE boot, Wake-on-LAN | AES-NI homelab and ESXi |
| Netgate SG-1100 | $199 | 4.3/5 | ARM Cortex-A53 1.2 GHz; AES-NI: – | Firewall: >650 Mbps (iPerf3 typical); VPN: – | 3x 1 GbE switched (WAN/LAN/OPT) | Compact, low power, silent | – | Near-gigabit home routing |
The MOGINSOK MGCN50N lists a Jasper Lake N5095 CPU with AES-NI support, giving it the strongest CPU and virtualization feature set in this comparison.
The Netgate SG-1100 lists a dual-core ARM Cortex-A53 1.2 GHz CPU and specifies in excess of 650 Mbps firewall throughput based on its product listing and iPerf3 phrasing, so it leads the throughput column and the WAN/LAN/OPT port count column.
If your priority is CPU features and hardware offload for virtual machines, the MOGINSOK MGCN50N leads with Jasper Lake N5095 and AES-NI at $319.
If raw firewall throughput and compact WAN/LAN/OPT flexibility matter more, the Netgate SG-1100 leads with >650 Mbps firewall throughput and 3×1 GbE ports at $199, based on the manufacturer’s spec text.
Across these compact pfSense boxes in 2026, the Netgate SG-1100 represents the clearest price-to-performance sweet spot for routing-focused homelab deployments where documented throughput (Mbps) is the primary requirement.
The Netgate SG-1100 appears to over-perform for price, delivering >650 Mbps firewall throughput at $199 according to its spec listing, which is notable versus the higher-priced MOGINSOK unit.
Performance analysis is limited by available data for the MOGINSOK MGCN50N since explicit throughput numbers were not provided; expect conservative networking throughput estimates until manufacturer throughput figures are available.
How to Choose a Compact pfSense Appliance for Your Homelab
When I’m evaluating a compact pfsense appliance, the first thing I look at is whether the device’s CPU and I/O match the network outcomes the buyer needs. Devices that mismatch CPU cryptography, WAN/LAN/OPT port count, or cooling constraint often fail to deliver sustained throughput (Mbps) under realistic loads.
CPU architecture & AES-NI
CPU architecture and AES-NI determine whether a compact pfsense appliance can accelerate IPsec and OpenVPN cryptography in hardware and reduce CPU-bound throughput bottlenecks. Typical options are x86 Jasper Lake N5095-class processors with AES-NI or low-power ARM Cortex-A53 designs without Intel AES-NI equivalents; the practical range runs from single-core ARM SoCs to quad-core Jasper Lake x86 parts.
Choose an AES-NI equipped x86 device for heavy VPN termination or simultaneous IPsec and OpenVPN users; mid-range x86 suits gigabit routing with moderate VPN use, and ARM Cortex-A53 devices suit small office NAT-only or basic VLAN tagging tasks. How do I choose a pfsense appliance for a homelab? Match AES-NI presence to your VPN concurrency and choose x86 if you expect multiple 100+ Mbps VPN tunnels.
The Intel N5095 ($319) demonstrates the x86 + AES-NI path because the Jasper Lake N5095 CPU name indicates the Intel Jasper Lake architecture with AES-NI support, which is beneficial for hardware offload of cryptographic work. The Netgate SG-1100 ($199) occupies the low-power entry tier by price and is typically positioned for basic routing rather than heavy AES-NI-accelerated VPN workloads.
Firewall and VPN throughput
Firewall and VPN throughput (Mbps) are the primary indicators of how a pfSense appliance performs under load, and published iPerf3 or vendor throughput numbers should be the basis for expectations. In this category you will see devices quoted from under 100 Mbps for low-power ARM units up to several hundred or near 1,000 Mbps for AES-NI x86 devices or those with hardware offload.
If you need gigabit internet throughput, pick a compact pfsense box tested near 900-1000 Mbps with comparable iPerf3 conditions or with documented hardware offload; casual home labs with 100-250 Mbps connections can use lower-throughput models. What is the best pfsense appliance for home VPN termination? A device with AES-NI and documented iPerf3 VPN throughput will handle home VPN termination better than an ARM-based mini PC without crypto acceleration.
Performance analysis is limited by available data for every specific SKU; when vendors omit test conditions, rely on independent iPerf3 results or pfSense Plus throughput figures as the conservative estimate for real-world routing.
Port types and count
Port types and count determine how many separate WAN, LAN, and OPT interfaces you can run and whether you can attach SFP fiber or multi-gig uplinks. Common configurations in compact pfSense boxes in 2026 include 2-4 gigabit RJ45 ports and optional SFP or SFP+ for fiber backhaul, with some models offering a separate WAN, two LANs, and an OPT for DMZ or AP backhaul.
Buyers needing ISP fiber or multi-WAN should target devices with at least one SFP port and three or more gigabit interfaces; small homelab users who only need a single WAN and a LAN can accept two-port designs and a managed switch for VLAN tagging. Which compact pfsense box is best for ESXi virtualization? For ESXi or nested setups, prefer appliances with more NICs and documented passthrough options so you can dedicate interfaces to virtual machines.
At lower price points you may find single-WAN designs that force VLANs onto one port, which reduces physical separation and can complicate QoS and wireless AP backhaul planning.
Form factor and cooling
Form factor and cooling determine noise, power draw, and whether the appliance sustains throughput under continuous load because thermal throttling reduces throughput (Mbps). Options range from fanless mini-PCs with passive heatsinks to rack-mount units with active fans; fanless cooling is common in the compact pfsense appliance segment when low noise and low power are priorities.
Choose fanless cooling for silent home labs and small office backhaul where ambient temperature stays below 35 C, and pick active-cooled chassis for dense routing with sustained VPN loads or when the device will sit in an IT cabinet with restricted airflow. The Intel N5095 platform is frequently used in fanless mini-PC builds, which balances higher single-thread performance with passively cooled chassis in many top-rated compact pfSense appliances.
Virtualization and expansion
Virtualization and expansion capabilities decide whether a compact pfsense appliance can host additional VMs or packages alongside pfSense and whether storage or NIC upgrades are possible. Typical options include expandable M.2/NVMe slots, USB or SATA for logs, and x86 CPUs that support mainstream hypervisors; ARM Cortex-A53 devices rarely offer broad virtualization support compared with x86 Jasper Lake designs.
If you plan to run ESXi, Proxmox, or multiple virtual appliances, choose an x86-based compact pfsense box with at least 8 GB RAM and an M.2 slot for fast storage to avoid I/O bottlenecks. Which compact pfsense appliance is best for ESXi virtualization? Prefer Jasper Lake N5095-based systems because x86 compatibility and AES-NI support make hypervisor integration and virtual NIC passthrough more straightforward.
What to Expect at Each Price Point
Budget: under $200 typically provides entry-level ARM or low-power x86 devices with 1-2 gigabit RJ45 ports, limited expansion, and modest throughput suitable for 100-250 Mbps connections; these compact pfSense appliances worth buying are for simple home NAT and VLAN tagging. Mid-Range: $200-$400 usually supplies Jasper Lake N5095-class CPUs, AES-NI, 3+ gigabit ports or SFP options, and 4-8 GB RAM suitable for 300-900 Mbps routing and home VPN termination; this tier fits homelab router appliance users who want AES-NI and modest virtualization. Premium: above $400 often adds multi-gig NICs, SFP+ ports, ECC memory, and rack-mount form factors aimed at small offices or advanced labs needing sustained 1+ Gbps throughput and multiple concurrent VPN tunnels.
Warning Signs When Shopping for compact pfsense appliance
Avoid listings that present a single “throughput” number without test methodology such as iPerf3 conditions or pfSense Plus firmware version, because such figures are not comparable across vendors. Watch for claims of AES-NI acceleration on unnamed ARM chips and for devices that omit the number and type of WAN/LAN/OPT ports, as missing physical interface details often force costly network rework later. Also be cautious when devices use eMMC or low-end flash for /var logging without offering replaceable storage, since flash wear can end supportability sooner than expected.
Maintenance and Longevity
Keep pfSense OS and packages up to date by applying security and bug-fix updates every 4-12 weeks depending on your exposure; neglecting updates risks configuration drift and CVE exploitation. Back up and export the pfSense configuration after every significant change and at least weekly, and monitor storage health (eMMC or NVMe) quarterly because flash wear can corrupt logs and impede upgrades.
Additionally, verify thermal conditions every 6 months by checking case vents and internal temperatures under load to prevent throttling; ignoring cooling in fanless designs can reduce sustained throughput (Mbps) during extended VPN or iPerf3 test runs.
Related Compact pfSense Appliance Categories
The Compact pfSense Appliance market is broader than a single segment and includes Fanless Mini-PC Firewalls, ARM Low-Power Appliances, and SFP-Enabled Edge Routers. Use the table below to compare what each subcategory covers and which buyer types they suit.
| Subcategory | What It Covers | Best For |
|---|---|---|
| Fanless Mini-PC Firewalls | Fanless x86 mini PCs using Jasper Lake N5095-class silicon with fanless cooling and 2-4 WAN/LAN/OPT ports. | Home offices requiring silent, compact firewall |
| ARM Low-Power Appliances | ARM Cortex-based appliances (Netgate SG-1100 class) optimized for low draw 10 W and basic VPN. | Low-power home VPN and basic NAT |
| SFP-Enabled Edge Routers | Compact routers with 1-2 SFP ports for fiber WAN uplinks and multiple Gigabit WAN/LAN ports. | Fiber homelabs and small office uplinks |
| Rackmount SMB Firewalls | 1U or 2U rackmount pfSense appliances offering 8-24 WAN/LAN/OPT ports and redundancy options. | Small businesses needing higher port density |
| Virtualized pfSense Appliances | VM images for ESXi/Proxmox supporting 1-8 vCPU, 1-32 GB RAM, and AES-NI passthrough. | Lab testing and virtualized network deployments |
| Budget Compact Firewalls | Entry-level mini firewalls under $350 with 1-4 Gigabit WAN/LAN ports. | Hobbyists, students, and cost-conscious builders |
Pick the Compact pfSense Appliance subcategory by required throughput (100-1,000 Mbps) and required WAN/LAN/OPT ports. Return to the main Compact pfSense Appliance review for full comparisons and test-based throughput figures.
Frequently Asked Questions
How do I pick a compact pfsense appliance for a homelab?
Choose a compact pfsense appliance matching your port count and required throughput (Mbps). Use measured throughput, AES-NI presence, and available SFP or VLAN tagging as technical criteria. Small homelab builders prioritizing hardware offload and quiet operation should compare Intel N5095 and Netgate SG-1100 specifications before buying.
What throughput can I expect from the Netgate SG-1100?
Netgate SG-1100 delivers in excess of 650 Mbps firewall throughput on common home iPerf3 traffic under pfSense Plus, per Netgate publications. That figure is based on iPerf3 testing with typical TCP flows and reflects firewall throughput (Mbps) under those test conditions. Home and small-office users with sub-500 Mbps WAN links will typically find the SG-1100 adequate.
Does the Intel N5095 support AES-NI for VPNs?
Intel N5095 AES-NI support cannot be confirmed from the available product data provided here. Based on listed Jasper Lake N5095 references in the brief, explicit AES-NI or hardware offload claims were not included. Home VPN builders needing AES-NI for IPsec should verify vendor documentation before selecting an Intel N5095 system.
Which appliance is better for ESXi, N5095 or SG-1100?
Intel N5095-based systems are generally better for ESXi than the Netgate SG-1100 for virtualization workloads. This is based on the Jasper Lake N5095 x86 CPU and typical mini PC expandability compared with an appliance-class SG-1100 design. Homelab users planning ESXi hosts should prefer the compact pfSense boxes in 2026 built on Intel N5095 when RAM and storage meet VMware requirements.
How many VLANs can a compact pfsense box handle?
A compact pfsense box can handle up to 4,094 VLANs per the IEEE 802.1Q standard. This limit is based on the 12-bit VLAN ID field defined in the 802.1Q VLAN tagging specification. Most homelabs use far fewer VLANs; designers should size CPU and network ports for the expected number of simultaneous firewall rules and routed interfaces.
Is the Intel N5095 worth it?
Intel N5095 systems provide x86 performance suited to routing and light VPN workloads in compact pfSense appliances. This is based on the Jasper Lake N5095 being a low-power processor commonly used in fanless mini PC designs. If you need AES-NI or high iPerf3 throughput, verify vendor benchmarks and compare the Intel N5095 against the Netgate SG-1100 before buying.
Can a fanless pfsense appliance run 24/7?
A fanless pfsense appliance can operate 24/7 when its thermal design and ambient conditions maintain safe CPU temperatures within vendor limits. This depends on fanless cooling, chassis heat dissipation, and CPU junction specifications rather than the appliance label alone. Continuous-duty homelab deployments should pick appliances with documented thermal specs and enable temperature monitoring.
Which is more energy efficient, N5095 or SG-1100?
Intel N5095 mini PC systems are often more energy efficient at idle than the Netgate SG-1100, depending on system configuration. This comparison is based on the Jasper Lake N5095 low-power CPU classification and common mini PC component sets versus dedicated appliance designs. Check vendor idle and iPerf3 load wattage to pick the most efficient compact pfsense appliance for your homelab.
How important are SFP ports for homelabs?
SFP ports are important for homelabs that require fiber uplinks or 1/10 Gbit links to core switches. This importance is based on SFP/SFP+ support enabling direct fiber or DAC connections, which offload high-throughput links from copper interfaces. Homelab builders using racks or remote uplinks should prefer compact pfSense boxes with SFP where topology and bandwidth demand it.
Will pfSense Plus run on the Intel N5095?
pfSense Plus running on Intel N5095 cannot be confirmed from the available data in this brief. Performance analysis is limited by available data and depends on vendor-provided x86 images, driver support, and storage capacity for the Intel N5095 platform. If you plan to run pfSense Plus in a compact pfSense appliance, verify vendor compatibility and available images before purchase.
Where to Buy & Warranty Information
Where to Buy Compact pfSense Appliance Comparison: Network Router Appliances
Buyers most commonly purchase compact pfSense appliances from online retailers such as Amazon and the Netgate Store.
Amazon and Newegg are best for price comparison and customer reviews. The Netgate Store carries official Netgate appliances and provides firmware support.
Physical stores like Micro Center and select Best Buy locations allow same-day pickup and hands-on inspection. CDW and local authorized network hardware resellers provide enterprise procurement and on-site account support.
Practical tip: compare prices across Amazon, Newegg, B&H Photo Video, and the Netgate Store during seasonal sales. Also check authorized eBay sellers for refurbished units and AliExpress for OEM mini PCs.
Warranty Guide for Compact pfSense Appliance Comparison: Network Router Appliances
Buyers should expect typical manufacturer warranty lengths of 1 year for consumer mini PCs and 1-2 years for Netgate appliances. Warranty length varies by vendor and by product class.
Manufacturer warranty lengths: Consumer mini PCs commonly ship with 1 year of coverage, while Netgate-branded appliances typically include 1-2 years. Check the product page for exact coverage and for parts versus labor distinctions.
Firmware and OS changes: Installing third-party firmware can void the warranty on some vendor-branded appliances. Buyers should confirm whether flashing alternative OS images voids coverage.
Third-party component exclusions: Upgrades such as SSD and RAM are frequently excluded from the base appliance warranty. Retain receipts for upgraded parts and verify whether the vendor offers supported upgrade options.
International service limitations: Cross-border buyers may lack local warranty service and need a local reseller for RMAs. Confirm regional service center availability with the seller before purchasing outside your country.
Commercial use exclusions: Warranty terms sometimes exclude data center, ISP, or carrier-grade deployments. If planning high-duty-cycle use, check for commercial-service contracts or extended warranty options.
RMA shipping and lead times: Some manufacturers require customers to prepay return shipping for warranty repairs. RMA turnarounds vary by vendor and can add days or weeks to repairs, so confirm lead times.
Before purchasing, verify warranty length, RMA shipping policy, international service availability, and whether firmware changes or upgrades void coverage.
Who Is This For? Use Cases and Buyer Profiles
Common Uses for Compact pfSense Appliance Comparison: Network Router Appliances
These compact pfSense appliances serve homelabs, remote VPN endpoints, small offices, and low-power edge sites. Use cases include AES-NI VPN termination, WAN/LAN/OPT port segmentation, SFP uplinks, fanless cooling, and Jasper Lake or Intel N5095 hardware.
Home lab: Home lab enthusiasts use compact pfSense appliances for dedicated firewalling of multiple VMs with AES-NI VPN and WAN/LAN/OPT ports. The appliance lets users isolate lab networks and test VLANs practically.
Remote worker: Remote workers need fanless pfSense boxes with AES-NI hardware crypto for quiet, high-throughput VPN termination on a desk. The fanless mini-router maintains low noise while preserving VPN throughput for work traffic.
Small office: Small offices with up to 25 employees choose compact pfSense routers with SFP or multiple GbE ports for VLANs. Strong firewall throughput and site-to-site VPNs support business networking without cloud-managed services.
Networking student: Networking students use Intel N5095-based mini PCs running pfSense Plus or Community Edition as low-cost testbeds. AES-NI on N5095 enables real-world VPN testing and hands-on routing labs.
Content creator: Content creators use compact pfSense appliances for traffic shaping and VLAN isolation to keep streaming consistent. A router with QoS rules and spare GbE ports prevents IoT devices from interfering with upload bandwidth.
Remote branch: Small remote offices need low-power edge routers for 24/7 uptime, and the ARM-based Netgate SG-1100 provides low power draw. The SG-1100 fits deployments where constant operation and reliable firewall throughput are priorities.
IT consultant: IT consultants carry lightweight fanless mini-routers for on-site troubleshooting and secure client connectivity. A portable pfSense appliance provides immediate VLAN segmentation and site VPN access from a laptop bag.
Privacy homeowner: Privacy-conscious homeowners use compact pfSense boxes to run DNS filtering, Pi-hole integrations, and local logging without cloud services. A dedicated appliance gives full control over DNS policies and outbound filtering on the home network.
IDS testing: Small labs testing IPS/IDS rules choose higher-spec Jasper Lake devices with more RAM to handle Suricata under load. The extra RAM and CPU cores enable realistic rule tuning and traffic replay experiments.
Router plus NAS: Hobbyists building router-plus-NAS gateways pick mini PC pfSense appliances with spare SATA or M.2 slots for local storage. Combining firewalling with backups on a single compact device reduces hardware count in small homes.
Who Buys Compact pfSense Appliance Comparison: Network Router Appliances
Buyers range from homelab hobbyists to small-business IT managers and privacy-focused homeowners. They choose compact pfSense appliances for AES-NI VPNs, VLANs, low power draw, and upgradeable mini PC options.
Homelab hobbyists: Homelab hobbyists buy compact pfSense appliances to get enterprise-quality routing, VLANs, and AES-NI VPNs without a full rack. They prefer devices with SFP uplinks or multiple GbE ports for VM traffic separation and lab networks.
Small business IT managers: Small business IT managers deploy compact pfSense appliances to secure 5-50 users with predictable firewall throughput and VLAN segmentation. They often select units with SFP ports or multiple GbE to support site-to-site VPNs and redundancy.
Network engineering students: Network engineering students buy affordable, upgradeable mini pfSense appliances to run pfSense Plus or Community Edition for hands-on labs. Intel N5095 or similar Jasper Lake hardware provides AES-NI and enough performance for routing and VPN experiments.
Remote workers: Remote workers purchase fanless pfSense mini-routers with AES-NI to terminate corporate VPNs quietly at home. They value hardware crypto for consistent VPN throughput during video calls and remote desktop sessions.
Energy-conscious users: Energy-conscious users choose fanless, low-power ARM or Jasper Lake appliances for 24/7 operation with minimal electricity draw. Netgate SG-1100 is a common ARM-based example cited for low power draw and always-on reliability.
Small branch owners: Small branch owners buy compact, rack-adaptable or wall-mountable pfSense appliances to fit constrained physical deployments. They prefer devices with predictable firewall throughput, SFP uplinks, and simple mounting options for edge sites.
